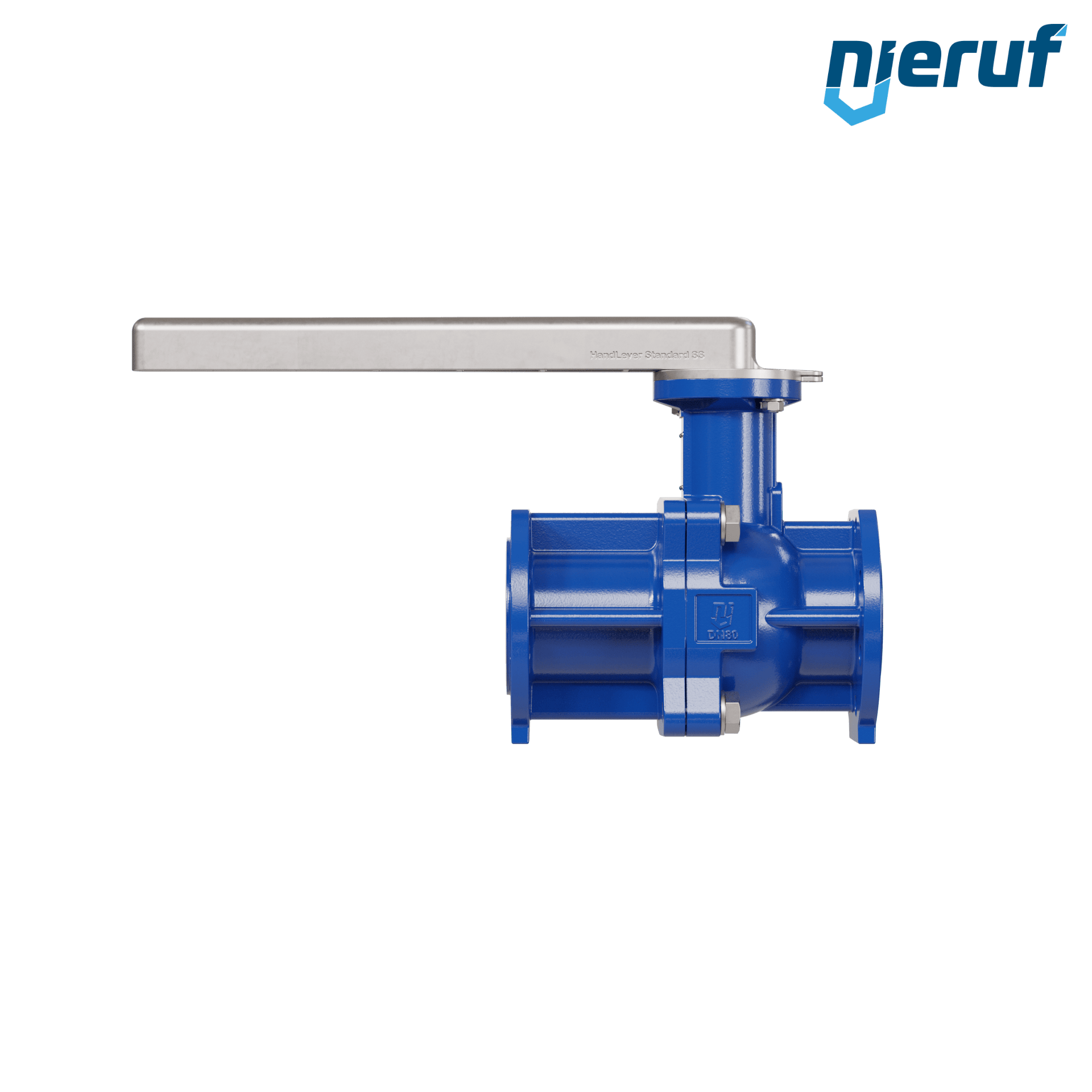

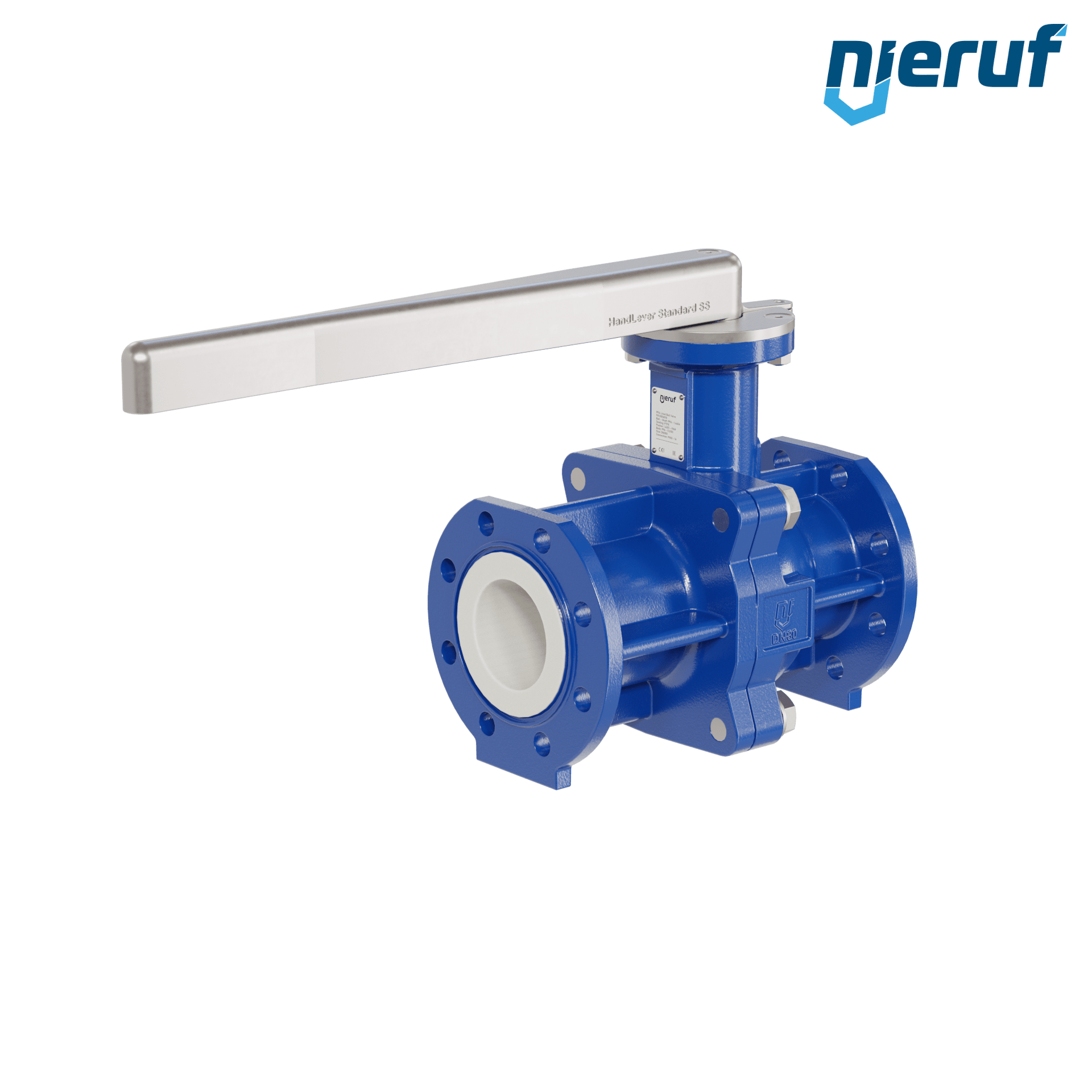

PFA-flange ball valve FK13 DN80 PN10/16 body spheroidal graphite cast iron 5.3103 ball PFA seal PTFE for liquid, gaseous and aggressive media with lever handle

product	PFA-flange ball valve
type	FK13
manufacturer	NieRuf
diameter	DN80 - 3" inch
connection	flange dimensions acc. to EN 1092-1 PN10-16
Seal steam	PTFE
ball seal	PTFE
media	liquid, gaseous and aggressive media
temperature	-20°C up tp +200°C
max. pressure	PN10/16
design	full port design
body material	spheroidal graphite cast iron 5.3103 / Gr. 60-40-18
lining	PFA
ball material	PFA
length	DIN EN 558, R 1
actuator	lever handle made of steel
installation position	any position
authorized for	TA Luft
product description	This high-quality PFA ball valve is suitable for aggressive media up to 200°C. Thanks to the patented technology, age-related wear is prevented. The PFA coating protects the movable metallic connection between the ball core and the shaft.

Expand Collapse

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

PFA-flange ball valve FK13 DN80 - 3" inch PN10/16 made of spheroidal graphite cast iron with lever hand

Article no. : FK13000010
product: PFA-flange ball valve
type: FK13
manufacturer: NieRuf
diameter: DN80 - 3" inch
connection: flange dimensions acc. to EN 1092-1 PN10-16
Seal steam: PTFE
ball seal: PTFE
media: liquid, gaseous and aggressive media
temperature: -20°C up tp +200°C
max. pressure: PN10/16
design: full port design
body material: spheroidal graphite cast iron 5.3103 / Gr. 60-40-18
lining: PFA
ball material: PFA
length: DIN EN 558, R 1
actuator: lever handle made of steel
installation position: any position
authorized for: TA Luft
product description: This high-quality PFA ball valve is suitable for aggressive media up to 200°C. Thanks to the patented technology, age-related wear is prevented. The PFA coating protects the movable metallic connection between the ball core and the shaft.
