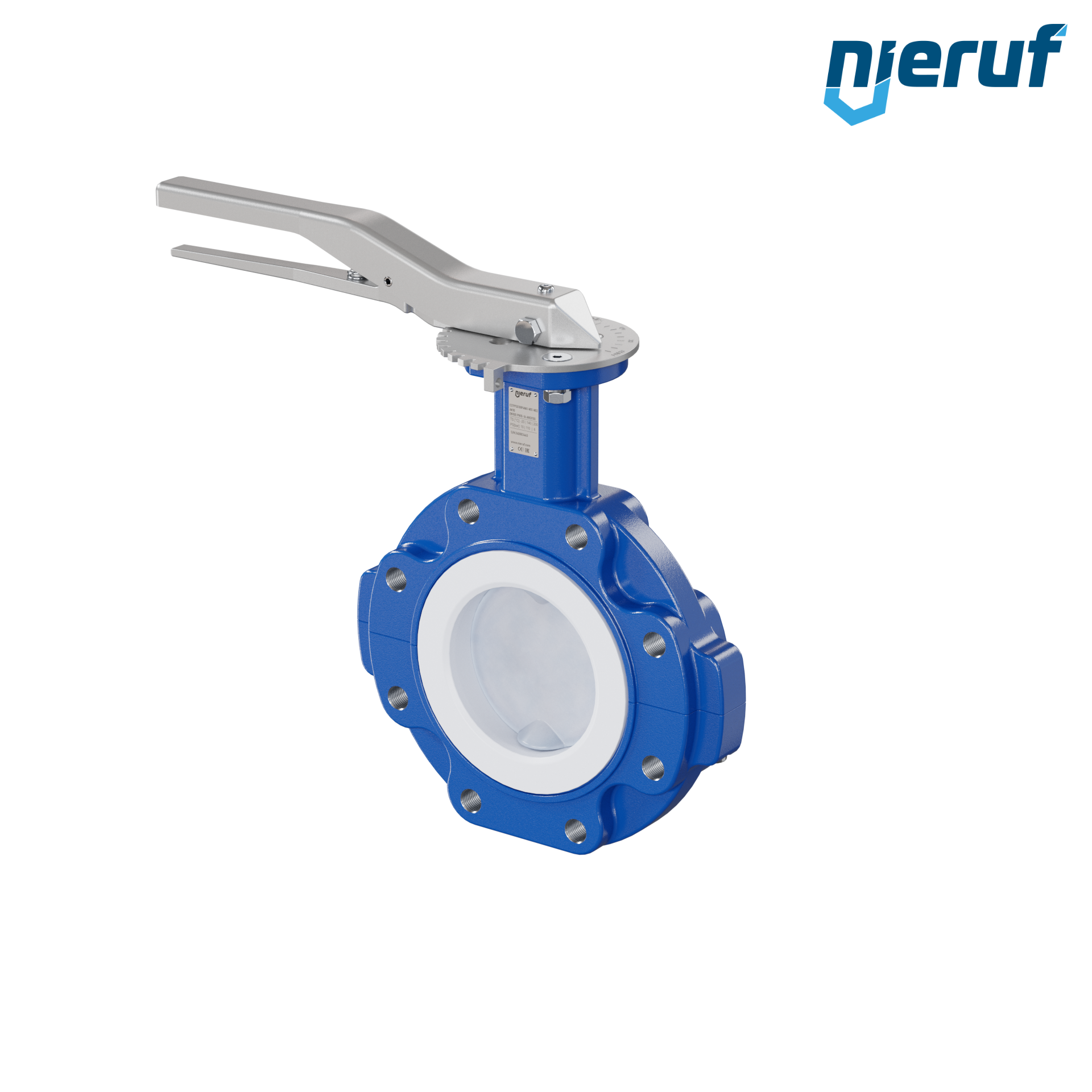

PFA-Butterfly-valve DN100 ANSI150 Lug type with lever seal made of PTFE and silicone insert for aggressive media
product: PFA-Butterfly-valve
type: AK10
manufacturer: NieRuf
diameter: DN100
nominal pressure: ANSI150
max. working pressure: 10 bar
sleeves: PTFE
media: liquid, gaseous and aggressive media
temperature: -20°C up to +200°C
design: Lug type
body material: ductile iron 5.3103 epoxy-coating 120μm
disc: PFA
Insert: silicone
actuation: lever
application: for extreme usage
installation position: shaft preferably horizontal
product feature: PFA-butterfly-valve and PTFE sleeve for aggressive media

Bei Bestellung ab einem Warenwert von 3.000,– Euro erhalten Sie von uns einen Rabatt von 5%.

Jetzt Rabattcode einlösen!

XY12349876Z
brand-logo

Bei Bestellung ab einem Warenwert von 3.000,– Euro erhalten Sie von uns einen Rabatt von 5%.

Jetzt Rabattcode einlösen!

XY12349876Z
brand-logo

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

PFA-Butterfly-valve PTFE AK10 DN100 ANSI150 lever silicone insert

Article no. : AK10320011
product: PFA-Butterfly-valve
type: AK10
manufacturer: NieRuf
diameter: DN100
nominal pressure: ANSI150
max. working pressure: 10 bar
sleeves: PTFE
media: liquid, gaseous and aggressive media
temperature: -20°C up to +200°C
design: Lug type
body material: ductile iron 5.3103 epoxy-coating 120μm
disc: PFA
Insert: silicone
actuation: lever
application: for extreme usage
installation position: shaft preferably horizontal
product feature: PFA-butterfly-valve and PTFE sleeve for aggressive media

Bei Bestellung ab einem Warenwert von 3.000,– Euro erhalten Sie von uns einen Rabatt von 5%.

Jetzt Rabattcode einlösen!

XY12349876Z

AK10320011

PFA-Butterfly-valve PTFE AK10 DN100 ANSI150 lever silicone insert

Price:

€938.20*

Content: 1

Delivery time: 2 - 3 weeks

nieruf.theme.component.delivery-information.delivery-information.image.alt
pcs.
RV05010311
PTFE-check valve DN100 - 4" inch ANSI B 16.5 CL 150
diameter DN100 - 4" inch
connection flange ANSI 150

Delivery time 2 - 3 weeks

€1,226.20*

€1,459.18 VAT included.

€1,459.18 VAT included.

FK13010011
PFA-flange ball valve FK13 DN100 - 4" inch ANSI 150 made of spheroidal graphite cast iron with lever hand
diameter DN100 - 4" inch
connection flange ANSI 150

Delivery time 2 - 3 weeks

€2,502.20*

€2,977.62 VAT included.

€2,977.62 VAT included.
